Forcing data analysis#
The CMIP6 forcing data have been plotted to analyse changing trends. This has been done for all forcing inputs: Temperature, precipitation, shortwave radiation and potential evaporation in the LAR basin.
The structure of the notebook below is as follows:
1. Startup & Imports#
2. Preparing the forcing data#
4. 3. Period forcing avg table#
4. Yearly forcing avg graph#
1. Startup & Imports#
# Imports
# General python
import warnings
warnings.filterwarnings("ignore", category=UserWarning)
import numpy as np
from pathlib import Path
import pandas as pd
import matplotlib.pyplot as plt
import xarray as xr
from scipy.interpolate import interp1d
from scipy.stats import linregress
# Niceties
from rich import print
# General eWaterCycle
import ewatercycle
import ewatercycle.models
import ewatercycle.forcing
# Defining things
basin_size = 132572
q_critical = 500
# Define only future scenarios
scenarios = ["ssp126", "ssp245", "ssp370"]
# Redefine scenarios to include historical
scenarios_new = ["historical", "ssp126", "ssp245", "ssp370"]
# Attach colours to scenarios to make plotting easier
colours = {"historical": "tab:blue", "ssp126": "green", "ssp245": "orange", "ssp370": "red"}
# Define periods
periods = [[2025, 2050, 2075],
[2050, 2075, 2099]]
hist_periods = ([1989], [2014])
2. Preparing the forcing data#
var_names = {"evspsblpot", "pr", "rsds", "tas"}
forcing_data = {}
annual_avg = []
period_avg = []
for scenario in scenarios:
forcing_data[scenario] = {}
for var_name in var_names:
merged_data_list = []
for i in range(len(periods[0])):
start_year = periods[0][i]
end_year = periods[1][i]
# Define file path
forcing_file = Path.home() / "BEP-maxime" / "book" / "thesis_projects" / "BSc" / "2026_Q4_MaximedeBekker_CEG" / "Workyard" / "forcings" / "CMIP6" / scenario / f"CMIP6-{start_year}-{end_year}" / f"combined_CMIP6_{start_year}_{end_year}_{var_name}.nc"
# Load file as dataset
ds = xr.open_dataset(forcing_file)
# Load file as array
da = ds[var_name]
# Convert to series
series = pd.Series(data=da.values.squeeze(),index=pd.to_datetime(da["time"].values).normalize(),name=var_name)
# Convert pr and evap from km^2/s to mm^2/day
if var_name in ["pr", "evspsblpot"]:
series = series * 86400
annual = series.groupby(series.index.year).sum()
# Convert temp from Kelvin to Celcius
elif var_name == "tas":
series = series - 273.15
annual = series.groupby(series.index.year).mean()
elif var_name == "rsds":
annual = series.groupby(series.index.year).mean()
# Save for merged time series
merged_data_list.append(series)
# Save annual values
for year, annual_value in annual.items():
annual_avg.append({
"scenario": scenario,
"period": f"{start_year}-{end_year}",
"year": year,
"variable": var_name,
"value": annual_value})
# Save 25 year average
period_avg.append({
"scenario": scenario,
"period": f"{start_year}-{end_year}",
"variable": var_name,
"value": annual.mean()})
# Merge periods into one 2025–2099 series
merged_data = pd.concat(merged_data_list)
merged_data = merged_data[~merged_data.index.duplicated(keep="first")]
merged_data = merged_data.sort_index()
forcing_data[scenario][var_name] = merged_data
# Create summary table for annual avg values
annual_table = pd.DataFrame(annual_avg)
# Create summary table for period avg values
period_table = pd.DataFrame(period_avg).pivot_table(index=["scenario", "period"],columns="variable",values="value")
# Prepare historical data
def load_hist(start_year, end_year):
forcing_data_hist = {}
scenario = "historical"
forcing_data_hist[scenario] = {}
annual_avg = []
for var_name in var_names:
merged_data_list = []
forcing_file = Path.home() / "BEP-maxime" / "book" / "thesis_projects" / "BSc" / "2026_Q4_MaximedeBekker_CEG" / "Workyard" / "forcings" / "CMIP6" / scenario / f"CMIP6-{start_year}-{end_year}" / f"combined_CMIP6_{start_year}_{end_year}_{var_name}.nc"
# Load file as dataset
ds = xr.open_dataset(forcing_file)
# Load file as array
da = ds[var_name]
# Convert to series
series = pd.Series(data=da.values.squeeze(),index=pd.to_datetime(da["time"].values).normalize(),name=var_name)
# Convert pr and evap from km^2/s to mm^2/day
if var_name in ["pr", "evspsblpot"]:
series = series * 86400
annual = series.groupby(series.index.year).sum()
# Convert temp from Kelvin to Celcius
elif var_name == "tas":
series = series - 273.15
annual = series.groupby(series.index.year).mean()
elif var_name == "rsds":
annual = series.groupby(series.index.year).mean()
# Save for merged time series
merged_data_list.append(series)
# Save annual values
for year, annual_value in annual.items():
annual_avg.append({
"scenario": scenario,
"period": f"{start_year}-{end_year}",
"year": year,
"variable": var_name,
"value": annual_value})
# Merge period into one series
merged_data = pd.concat(merged_data_list)
merged_data = merged_data[~merged_data.index.duplicated(keep="first")]
merged_data = merged_data.sort_index()
forcing_data_hist[scenario][var_name] = merged_data
annual_hist_table = pd.DataFrame(annual_avg)
return annual_hist_table, forcing_data_hist
annual_hist_table,forcing_data_hist = load_hist(start_year=1989,end_year=2014)
annual_hist_table.head()
| scenario | period | year | variable | value | |
|---|---|---|---|---|---|
| 0 | historical | 1989-2014 | 1989 | tas | 2.562430 |
| 1 | historical | 1989-2014 | 1990 | tas | 1.319359 |
| 2 | historical | 1989-2014 | 1991 | tas | 1.052132 |
| 3 | historical | 1989-2014 | 1992 | tas | 0.776736 |
| 4 | historical | 1989-2014 | 1993 | tas | 1.499663 |
3. Period forcing avg table#
def create_period_forcing_table(annual_table):
period_forcing_table = (annual_table.groupby(["scenario", "period", "variable"])["value"].mean().reset_index())
period_forcing_table = period_forcing_table.pivot_table(index=["scenario", "period"], columns="variable", values="value")
return period_forcing_table
Table 9: 25 year average forcing data values for future climate scenarios.
period_forcing_table = round(create_period_forcing_table(annual_table), 1)
period_forcing_table
| variable | evspsblpot | pr | rsds | tas | |
|---|---|---|---|---|---|
| scenario | period | ||||
| ssp126 | 2025-2050 | 621.1 | 633.9 | 138.5 | 2.5 |
| 2050-2075 | 625.8 | 630.1 | 138.7 | 3.0 | |
| 2075-2099 | 621.5 | 645.3 | 138.2 | 2.7 | |
| ssp245 | 2025-2050 | 628.0 | 623.0 | 139.5 | 2.7 |
| 2050-2075 | 632.7 | 637.3 | 138.3 | 3.6 | |
| 2075-2099 | 635.6 | 659.8 | 137.8 | 3.6 | |
| ssp370 | 2025-2050 | 623.4 | 640.5 | 138.5 | 2.7 |
| 2050-2075 | 636.3 | 650.3 | 136.7 | 4.4 | |
| 2075-2099 | 656.9 | 645.7 | 136.6 | 5.4 |
period_forcing_table = round(create_period_forcing_table(annual_table), 1)
period_forcing_table
4. Yearly forcing avg graph#
def plot_annual_forcing_variable(annual_forcing_table, var_name):
# Combine historical and scenarios
annual_forcing_table_all = pd.concat([annual_hist_table, annual_forcing_table],ignore_index=True)
data = annual_forcing_table_all[annual_forcing_table_all["variable"] == var_name]
plt.figure(figsize=(9, 5))
# Loop through scenarios
for scenario in scenarios_new:
# Extract one scenario and colour
scenario_data = data[data["scenario"] == scenario]
colour = colours[scenario]
# Plot historical
if scenario == "historical":
# Plot yearly average
plt.plot(scenario_data["year"], scenario_data["value"], color=colour, linewidth=0.3, label=scenario)
x = scenario_data["year"].values
y = scenario_data["value"].values
# Polyfit method for making trendline function
slope, intercept = np.polyfit(x, y, 1)
trend = slope * x + intercept
# Plot trendline
plt.plot(x,trend,linestyle="--",color=colour)
# Plot other scenarios
else:
# Plot yearly average
plt.plot(scenario_data["year"], scenario_data["value"], alpha=0.3, color=colour, label=scenario)
# Look at each 25 year period
for i in range(len(periods[0])):
# Define period range
start_year = periods[0][i]
end_year = periods[1][i]
# Adjust data to fit period range
period_data = scenario_data[
(scenario_data["year"] >= start_year) &
(scenario_data["year"] <= end_year)]
# Plot trend line over each 25 year period
if len(period_data) > 1:
x = period_data["year"].values
y = period_data["value"].values
# Polyfit method for making trendline function
slope, intercept = np.polyfit(x, y, 1)
trend = slope * x + intercept
# Plot trendline
plt.plot(x,trend,linestyle="--",color=colour)
# Define titles and labels based on var_name
if var_name == "pr":
ylabel = "Annual precipitation (mm/year)"
title = "Annual precipitation in LAR basin by climate scenario"
elif var_name == "evspsblpot":
ylabel = "Annual potential evaporation (mm/year)"
title = "Annual potential evaporation in LAR basin by climate scenario"
elif var_name == "tas":
ylabel = "Annual mean temperature increase (°C)"
title = "Annual mean temperature in LAR basin by climate scenario"
elif var_name == "rsds":
ylabel = "Annual mean shortwave radiation (W/m²)"
title = "Annual mean shortwave radiation in LAR basin by climate scenario"
plt.xlabel("Year")
plt.ylabel(ylabel)
plt.title(title)
plt.grid(True)
plt.legend()
plt.show()
# Define figure number for first figure
n = 22
# Define var names
vars = ["pr", "tas", "rsds", "evspsblpot"]
# Run function to display plots for each var_name in vars
for i in range(len(vars)):
plot_annual_forcing_variable(annual_table, vars[i])
print(f"Figure {n + i}: {vars[i]}-time series for future climate scenarios between 2025-2099 and historical CMIP6 forcings between 1989-2014.")

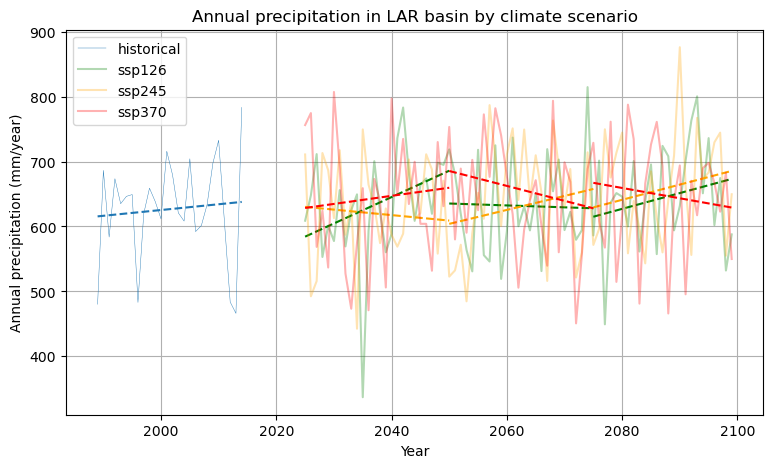

Figure 22: pr-time series for future climate scenarios between 2025-2099 and historical CMIP6 forcings between 1989-2014.

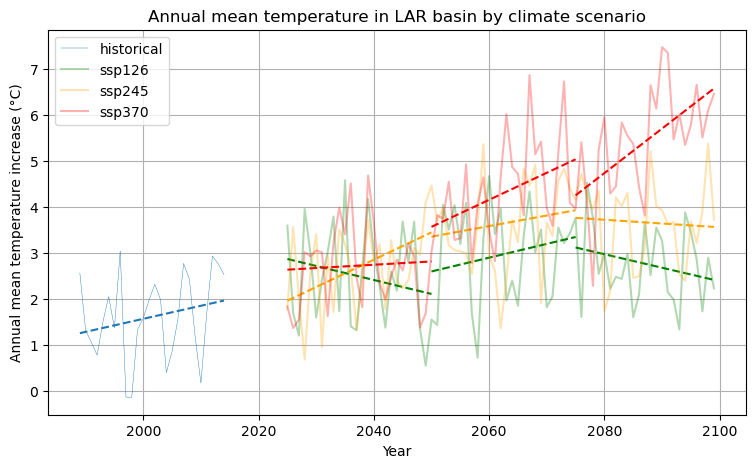

Figure 23: tas-time series for future climate scenarios between 2025-2099 and historical CMIP6 forcings between 1989-2014.

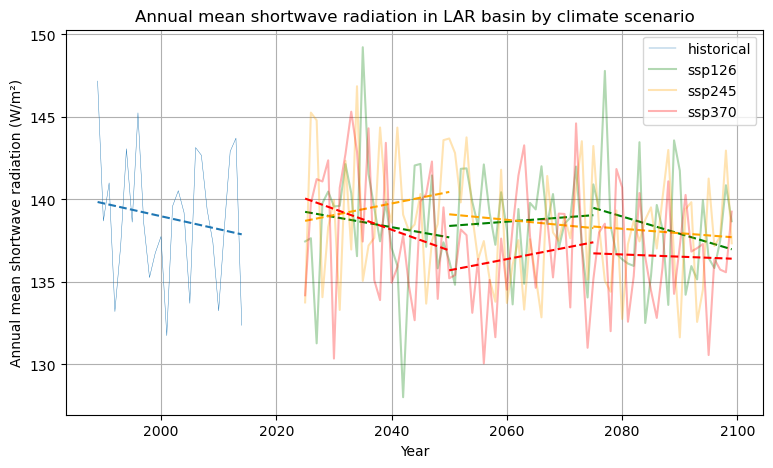

Figure 24: rsds-time series for future climate scenarios between 2025-2099 and historical CMIP6 forcings between 1989-2014.

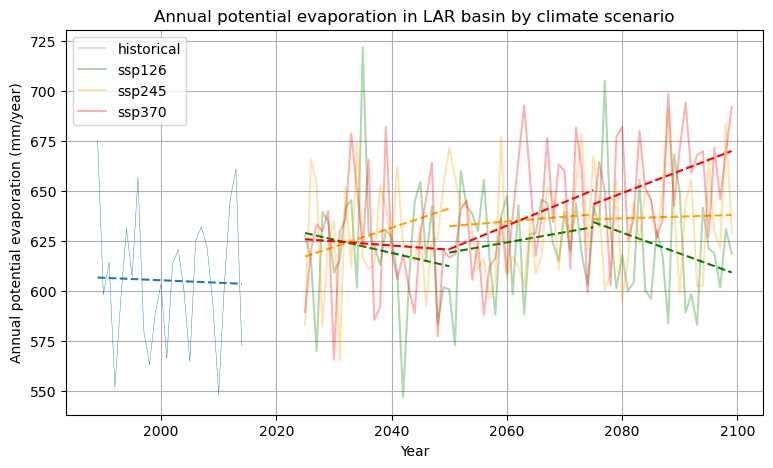

Figure 25: evspsblpot-time series for future climate scenarios between 2025-2099 and historical CMIP6 forcings between 1989-2014.
