HBV hydrological model forced with ERA5 forcing data#
In this notebook we will run the HBV model using the historical forcing data from ERA5 and CMIP6 we generated in earlier notebooks.
For a more basic explenation on how to run a model in eWaterCycle, see this tutorial.
# General python
import warnings
warnings.filterwarnings("ignore", category=UserWarning)
import numpy as np
from pathlib import Path
import pandas as pd
import matplotlib.pyplot as plt
import xarray as xr
import json
# Niceties
from rich import print
# General eWaterCycle
import ewatercycle
import ewatercycle.models
import ewatercycle.forcing
# Parameters
region_id = None
settings_path = "settings.json"
# Parameters
region_id = "camelsgb_23004"
settings_path = "regions/camelsgb_23004/settings.json"
# Load settings
# Read from the JSON file
with open(settings_path, "r") as json_file:
settings = json.load(json_file)
display(settings)
{'caravan_id': 'camelsgb_23004',
'calibration_start_date': '1994-08-01T00:00:00Z',
'calibration_end_date': '2004-07-31T00:00:00Z',
'validation_start_date': '2004-08-01T00:00:00Z',
'validation_end_date': '2014-07-31T00:00:00Z',
'future_start_date': '2029-08-01T00:00:00Z',
'future_end_date': '2049-08-31T00:00:00Z',
'CMIP_info': {'dataset': ['MPI-ESM1-2-HR'],
'ensembles': ['r1i1p1f1'],
'experiments': ['historical', 'ssp126', 'ssp245', 'ssp370', 'ssp585'],
'project': 'CMIP6',
'frequency': 'day',
'grid': 'gn',
'variables': ['pr', 'tas', 'rsds']},
'base_path': '/gpfs/scratch1/shared/mmelotto/ewatercycleClimateImpact/HBV',
'path_caravan': '/gpfs/scratch1/shared/mmelotto/ewatercycleClimateImpact/HBV/forcing_data/camelsgb_23004/caravan',
'path_ERA5': '/gpfs/scratch1/shared/mmelotto/ewatercycleClimateImpact/HBV/forcing_data/camelsgb_23004/ERA5',
'path_CMIP6': '/gpfs/scratch1/shared/mmelotto/ewatercycleClimateImpact/HBV/forcing_data/camelsgb_23004/CMIP6',
'path_output': '/gpfs/scratch1/shared/mmelotto/ewatercycleClimateImpact/HBV/output_data/camelsgb_23004',
'path_shape': '/gpfs/scratch1/shared/mmelotto/ewatercycleClimateImpact/HBV/forcing_data/camelsgb_23004/caravan/camelsgb_23004.shp',
'downloads': '/gpfs/scratch1/shared/mmelotto/ewatercycleClimateImpact/HBV/downloads/camelsgb_23004'}
load ERA5 forcing#
See this notebook on how the data loaded below was generated.
# This additional steo is needed because ERA5 forcing data is stored deep in a sub-directory
load_location = Path(settings['path_ERA5']) / "work" / "diagnostic" / "script"
ERA5_forcing_object = ewatercycle.forcing.sources["LumpedMakkinkForcing"].load(directory=load_location)
display(ERA5_forcing_object)
LumpedMakkinkForcing(start_time='1994-08-01T00:00:00Z', end_time='2014-07-31T00:00:00Z', directory=PosixPath('/gpfs/scratch1/shared/mmelotto/ewatercycleClimateImpact/HBV/forcing_data/camelsgb_23004/ERA5/work/diagnostic/script'), shape=PosixPath('/gpfs/scratch1/shared/mmelotto/ewatercycleClimateImpact/HBV/forcing_data/camelsgb_23004/ERA5/work/diagnostic/script/camelsgb_23004.shp'), filenames={'pr': 'OBS6_ERA5_reanaly_1_day_pr_1994-2014.nc', 'tas': 'OBS6_ERA5_reanaly_1_day_tas_1994-2014.nc', 'rsds': 'OBS6_ERA5_reanaly_1_day_rsds_1994-2014.nc', 'evspsblpot': 'Derived_Makkink_evspsblpot.nc'})

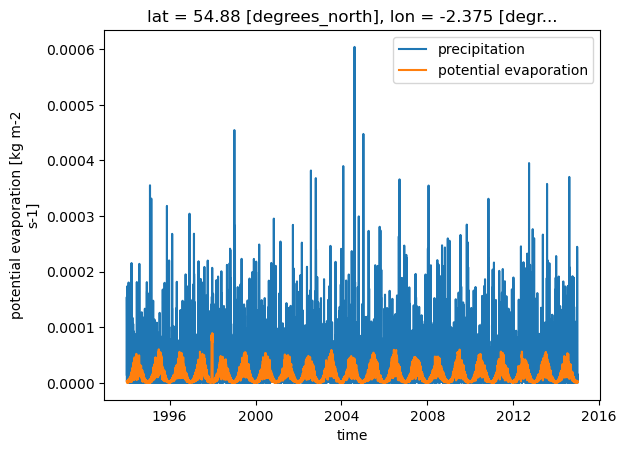

# Quick plot of the precipitation and potential evaporation data
ds_ERA5 = xr.open_mfdataset([ERA5_forcing_object['pr'],ERA5_forcing_object['evspsblpot']])
ds_ERA5["pr"].plot(label = 'precipitation')
ds_ERA5["evspsblpot"].plot(label = 'potential evaporation')
plt.legend()
/scratch-local/mmelotto.17144281/ipykernel_2702553/1279259822.py:2: FutureWarning: In a future version of xarray the default value for compat will change from compat='no_conflicts' to compat='override'. This is likely to lead to different results when combining overlapping variables with the same name. To opt in to new defaults and get rid of these warnings now use `set_options(use_new_combine_kwarg_defaults=True) or set compat explicitly.
/scratch-local/mmelotto.17144281/ipykernel_2702553/1279259822.py:2: FutureWarning: In a future version of xarray the default value for compat will change from compat='no_conflicts' to compat='override'. This is likely to lead to different results when combining overlapping variables with the same name. To opt in to new defaults and get rid of these warnings now use `set_options(use_new_combine_kwarg_defaults=True) or set compat explicitly.
<matplotlib.legend.Legend at 0x152567d86ae0>
CMIP historical forcing#
# because there can be multiple forcing datasets from CMIP historical
# for different climate models and different ensemble members, we will
# create a dict of forcing objects
CMIP_forcing_object = dict()
for dataset in settings['CMIP_info']['dataset']:
CMIP_forcing_object[dataset] = dict()
for ensemble_member in settings['CMIP_info']['ensembles']:
cmip_dataset = {
"dataset": dataset,
"project": settings['CMIP_info']['project'],
"grid": "gn",
"exp": "historical",
"ensembles": ensemble_member,
}
# This is the subfolder for this specific combination of dataset, experiment and ensemblemember
path_CMIP6 = Path(settings['path_CMIP6']) / cmip_dataset["dataset"] / cmip_dataset["exp"] / cmip_dataset["ensembles"]
# This is needed because forcing data is stored deep in a sub-directory
load_location = path_CMIP6 / "work" / "diagnostic" / "script"
CMIP_forcing_object[dataset][ensemble_member] = ewatercycle.forcing.sources["LumpedMakkinkForcing"].load(directory=load_location)
#print the created object to check if everything is correct before running the model
display(CMIP_forcing_object)
{'MPI-ESM1-2-HR': {'r1i1p1f1': LumpedMakkinkForcing(start_time='1994-08-01T00:00:00Z', end_time='2014-07-31T00:00:00Z', directory=PosixPath('/gpfs/scratch1/shared/mmelotto/ewatercycleClimateImpact/HBV/forcing_data/camelsgb_23004/CMIP6/MPI-ESM1-2-HR/historical/r1i1p1f1/work/diagnostic/script'), shape=PosixPath('/gpfs/scratch1/shared/mmelotto/ewatercycleClimateImpact/HBV/forcing_data/camelsgb_23004/CMIP6/MPI-ESM1-2-HR/historical/r1i1p1f1/work/diagnostic/script/camelsgb_23004.shp'), filenames={'pr': 'CMIP6_MPI-ESM1-2-HR_day_historical_r1i1p1f1_pr_gn_1994-2014.nc', 'tas': 'CMIP6_MPI-ESM1-2-HR_day_historical_r1i1p1f1_tas_gn_1994-2014.nc', 'rsds': 'CMIP6_MPI-ESM1-2-HR_day_historical_r1i1p1f1_rsds_gn_1994-2014.nc', 'evspsblpot': 'Derived_Makkink_evspsblpot.nc'})}}
Run models#
We create a dict of all model runs we want to do. subsequently we run all of these in a single loop. This is chosen because this loop can be run in parallel if this gets scaled up.
# Load calibration constants from a csv file
par_0 = np.loadtxt(Path(settings["path_output"]) / (settings['caravan_id'] + "_params_SCE.csv"), delimiter = ",")
# Print parameter names and values
param_names = ["Imax", "Ce", "Sumax", "Beta", "Pmax", "Tlag", "Kf", "Ks", "FM"]
display(list(zip(param_names, np.round(par_0, decimals=3))))
[('Imax', np.float64(7.957)),
('Ce', np.float64(1.0)),
('Sumax', np.float64(40.0)),
('Beta', np.float64(4.0)),
('Pmax', np.float64(0.002)),
('Tlag', np.float64(1.0)),
('Kf', np.float64(0.1)),
('Ks', np.float64(0.01)),
('FM', np.float64(2.039))]
# Set initial state values
# Si, Su, Sf, Ss, Sp
s_0 = np.array([0, 100, 0, 5, 0])
# Create model object, notice the forcing object.
models = dict()
for dataset in settings['CMIP_info']['dataset']:
for ensemble_member in settings['CMIP_info']['ensembles']:
models["CMIP6," + str(dataset) + "," +str(ensemble_member)] = ewatercycle.models.HBVLocal(forcing=CMIP_forcing_object[dataset][ensemble_member])
#add the ERA5 by hand
models["ERA5"] = ewatercycle.models.HBVLocal(forcing=ERA5_forcing_object)
display(models)
{'CMIP6,MPI-ESM1-2-HR,r1i1p1f1': HBVLocal(parameter_set=None, forcing=LumpedMakkinkForcing(start_time='1994-08-01T00:00:00Z', end_time='2014-07-31T00:00:00Z', directory=PosixPath('/gpfs/scratch1/shared/mmelotto/ewatercycleClimateImpact/HBV/forcing_data/camelsgb_23004/CMIP6/MPI-ESM1-2-HR/historical/r1i1p1f1/work/diagnostic/script'), shape=PosixPath('/gpfs/scratch1/shared/mmelotto/ewatercycleClimateImpact/HBV/forcing_data/camelsgb_23004/CMIP6/MPI-ESM1-2-HR/historical/r1i1p1f1/work/diagnostic/script/camelsgb_23004.shp'), filenames={'pr': 'CMIP6_MPI-ESM1-2-HR_day_historical_r1i1p1f1_pr_gn_1994-2014.nc', 'tas': 'CMIP6_MPI-ESM1-2-HR_day_historical_r1i1p1f1_tas_gn_1994-2014.nc', 'rsds': 'CMIP6_MPI-ESM1-2-HR_day_historical_r1i1p1f1_rsds_gn_1994-2014.nc', 'evspsblpot': 'Derived_Makkink_evspsblpot.nc'})),
'ERA5': HBVLocal(parameter_set=None, forcing=LumpedMakkinkForcing(start_time='1994-08-01T00:00:00Z', end_time='2014-07-31T00:00:00Z', directory=PosixPath('/gpfs/scratch1/shared/mmelotto/ewatercycleClimateImpact/HBV/forcing_data/camelsgb_23004/ERA5/work/diagnostic/script'), shape=PosixPath('/gpfs/scratch1/shared/mmelotto/ewatercycleClimateImpact/HBV/forcing_data/camelsgb_23004/ERA5/work/diagnostic/script/camelsgb_23004.shp'), filenames={'pr': 'OBS6_ERA5_reanaly_1_day_pr_1994-2014.nc', 'tas': 'OBS6_ERA5_reanaly_1_day_tas_1994-2014.nc', 'rsds': 'OBS6_ERA5_reanaly_1_day_rsds_1994-2014.nc', 'evspsblpot': 'Derived_Makkink_evspsblpot.nc'}))}
model_output=dict()
Execution using papermill encountered an exception here and stopped:
for modelName, model in models.items():
# Create config file in model.setup()
config_file, _ = model.setup(parameters=par_0, initial_storage=s_0)
# Initialize model
model.initialize(config_file)
# Run model, capture calculated discharge and timestamps
Q_m = []
time = []
while model.time < model.end_time:
model.update()
Q_m.append(model.get_value("Q")[0])
time.append(pd.Timestamp(model.time_as_datetime))
# Finalize model (shuts down container, frees memory)
model.finalize()
# Make a pandas series
model_output[modelName] = pd.Series(data=Q_m, name="modelled discharge, forcing: " + modelName, index=time)
---------------------------------------------------------------------------
JSONDecodeError Traceback (most recent call last)
Cell In[17], line 6
4 config_file, _ = model.setup(parameters=par_0, initial_storage=s_0)
5 # Initialize model
----> 6 model.initialize(config_file)
7 # Run model, capture calculated discharge and timestamps
8 Q_m = []
File ~/.local/lib/python3.12/site-packages/ewatercycle/base/model.py:170, in eWaterCycleModel.initialize(self, config_file)
164 def initialize(self, config_file: str) -> None:
165 """Initialize the model.
166
167 Args:
168 config_file: Name of initialization file.
169 """
--> 170 self._bmi.initialize(config_file)
File ~/.local/lib/python3.12/site-packages/grpc4bmi/bmi_optionaldest.py:49, in OptionalDestBmi.initialize(self, config_file)
48 def initialize(self, config_file: Optional[str]) -> None:
---> 49 return self.origin.initialize(config_file)
File ~/.conda/envs/ewatercycle_snellius/lib/python3.12/site-packages/HBV/HBV_bmi.py:49, in HBV.initialize(self, config_file)
39 """ "Based on LeakyBucketBMI simple implementation of HBV without snow component
40 Requires atleast:
41 ---------------------
(...) 46
47 """
48 # open json files containing data
---> 49 self.config: dict[str, Any] = utils.read_config(config_file)
51 # store forcing & obs
52 self.ds_P = utils.load_var(self.config["precipitation_file"], "pr")
File ~/.conda/envs/ewatercycle_snellius/lib/python3.12/site-packages/HBV/utils.py:12, in read_config(config_file)
10 def read_config(config_file: str) -> dict:
11 with open(config_file) as cfg:
---> 12 config = json.load(cfg)
14 for file in INPUT_FILES:
15 config[file] = Path(config[file])
File ~/.conda/envs/ewatercycle_snellius/lib/python3.12/json/__init__.py:293, in load(fp, cls, object_hook, parse_float, parse_int, parse_constant, object_pairs_hook, **kw)
274 def load(fp, *, cls=None, object_hook=None, parse_float=None,
275 parse_int=None, parse_constant=None, object_pairs_hook=None, **kw):
276 """Deserialize ``fp`` (a ``.read()``-supporting file-like object containing
277 a JSON document) to a Python object.
278
(...) 291 kwarg; otherwise ``JSONDecoder`` is used.
292 """
--> 293 return loads(fp.read(),
294 cls=cls, object_hook=object_hook,
295 parse_float=parse_float, parse_int=parse_int,
296 parse_constant=parse_constant, object_pairs_hook=object_pairs_hook, **kw)
File ~/.conda/envs/ewatercycle_snellius/lib/python3.12/json/__init__.py:346, in loads(s, cls, object_hook, parse_float, parse_int, parse_constant, object_pairs_hook, **kw)
341 s = s.decode(detect_encoding(s), 'surrogatepass')
343 if (cls is None and object_hook is None and
344 parse_int is None and parse_float is None and
345 parse_constant is None and object_pairs_hook is None and not kw):
--> 346 return _default_decoder.decode(s)
347 if cls is None:
348 cls = JSONDecoder
File ~/.conda/envs/ewatercycle_snellius/lib/python3.12/json/decoder.py:340, in JSONDecoder.decode(self, s, _w)
338 end = _w(s, end).end()
339 if end != len(s):
--> 340 raise JSONDecodeError("Extra data", s, end)
341 return obj
JSONDecodeError: Extra data: line 7 column 2 (char 827)
